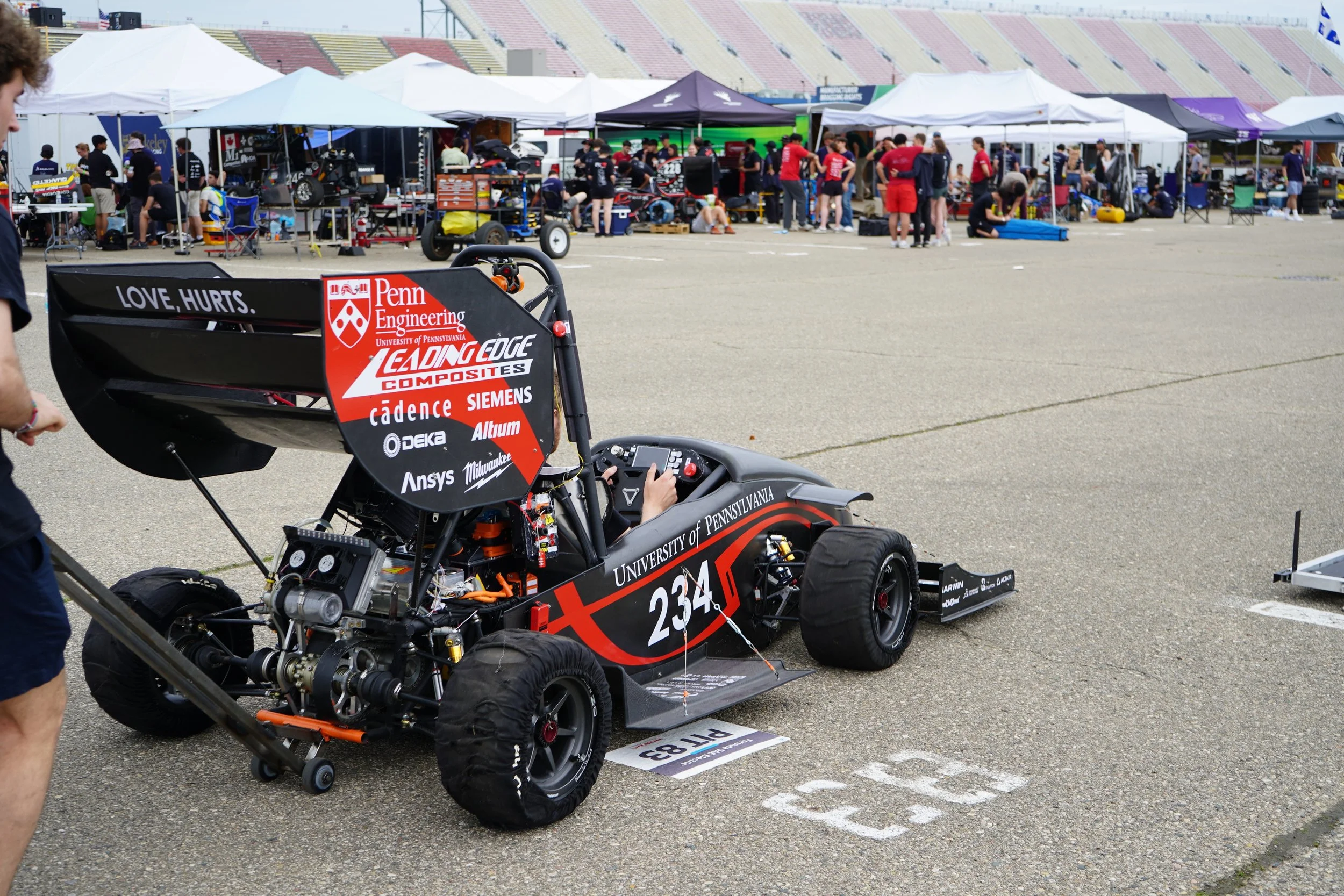

REVX: 2024-2025

Celebrating our 10th anniversary with our best design car yet

Motor and drivetrain


    Type
    1 motor, rear wheel drive

    Make
    Emrax 208 HV LC

    Peak Power
    80 kW

    Peak Torque
    150 Nm

    Max RPM
    7000 RPM

    Gearbox
    3.33:1 Planetary Gearbox + 1.7:1 Chain and Sprocket

Energy Accumulator


    Configuration
    1P-144S

    Cell Chemistry
    10Ah 3.7V LiPo LiCoO2 Pouch Cells

    Capacity
    5.33 kWh

    Peak Power
    80 kW

    Peak Voltage
    600 V

Dimensions and weight


    Length
    2885 mm

    Width
    1743 mm

    Height
    1213 mm

    Wheelbase
    1529 mm

    Curb Weight
    191.6 kg

    Weight Distribution
    46% front

Wheels and Tires


    Front Tires
    16" Hoosier R20 43075

    Rear Tires
    16" Hoosier R20 43075

Braking System


    Front Calipers
    AP Racing 4226-2SO

    Rear Calipers
    AP Racing 4226-2SO

Aerodynamics


    Downforce (at 30 mph)
    302 N

    ClA
    2.74

    CdA
    1.49

ELECTRICAL


    Power Management / Control
    Custom power distribution unit, powertrain control module, battery management system, revamped data-acquisition and dashboard module with telemetry, wireless data server, and upgraded compute

    Battery / Charging System
    Custom 5000mAh 12V battery with monitoring and charging, multiplexed with 600-12V DC-DC converter
